Understanding Shaded Pole Motors: Simple and Reliable

Working Principle of trumaxx Shaded Pole Motors

Shaded pole motors operate on the principle of electromagnetic induction. Inside the motor, there’s a coil of wire called the stator winding, which is connected to an AC power source. When electricity flows through the stator winding, it creates a magnetic field that induces a current in a nearby conductor—typically an aluminum or copper ring—known as the shading coil. This induced current produces a second magnetic field, which interacts with the main magnetic field, causing the rotor (shaft) to rotate. This rotation drives the load connected to the motor.

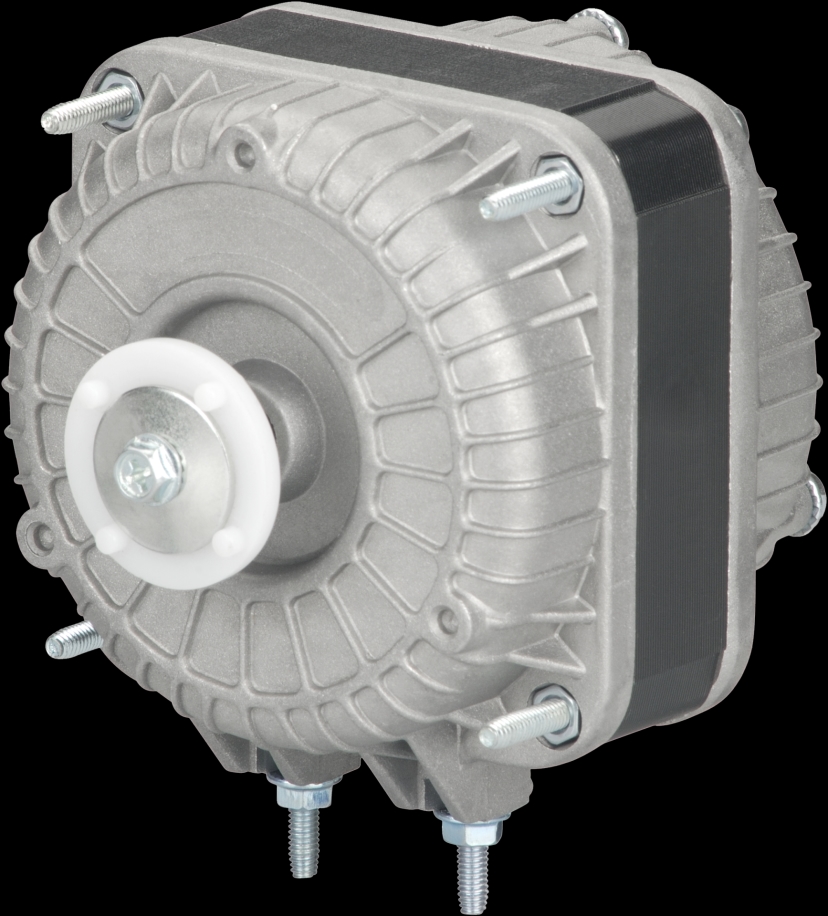

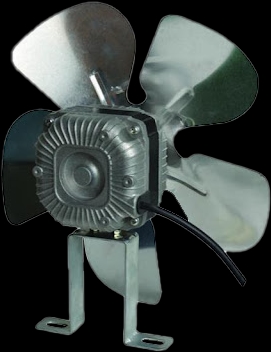

trumaxx SPM Construction

Shaded pole motors have a simple construction consisting of a stator, rotor, shading coil, and core. The stator typically consists of laminated steel sheets stacked together to minimize energy losses due to eddy currents. The shading coil, made of a conductive material, is positioned asymmetrically around a portion of the stator poles, creating non-uniform magnetic flux. This asymmetry induces the starting torque required to initiate rotation. The rotor is a cylindrical piece of iron or steel attached to a shaft, which rotates within the stator.

Underlying working principle of trumaxx Shaded Pole Motors

Advantages of using trumaxx SPM in your system

• Simplicity : Shaded pole motors have a simple design with fewer moving parts, making them cost-effective to manufacture and maintain.
• Reliability : Due to their robust construction and lack of brushes or commutators, shaded pole motors are highly reliable and durable.
• Low Starting Torque : Shaded pole motors provide sufficient starting torque for light-duty applications, such as driving small fans, pumps, and timers.
• Quiet Operation : These motors operate smoothly and quietly, making them suitable for noise-sensitive environments.
• Compact Size : Shaded pole motors are compact and lightweight, making them ideal for space-constrained applications where size matters.

In conclusion, shaded pole motors offer a simple yet effective solution for a wide range of applications requiring low to moderate starting torque. Their reliable performance, compact size, and ease of use make them a popular choice in various industries, from household appliances to HVAC systems. Understanding the basics of shaded pole motors can help engineers and enthusiasts appreciate their significance in the world of electric motors.
